Pre Engineered Buildings

Overview

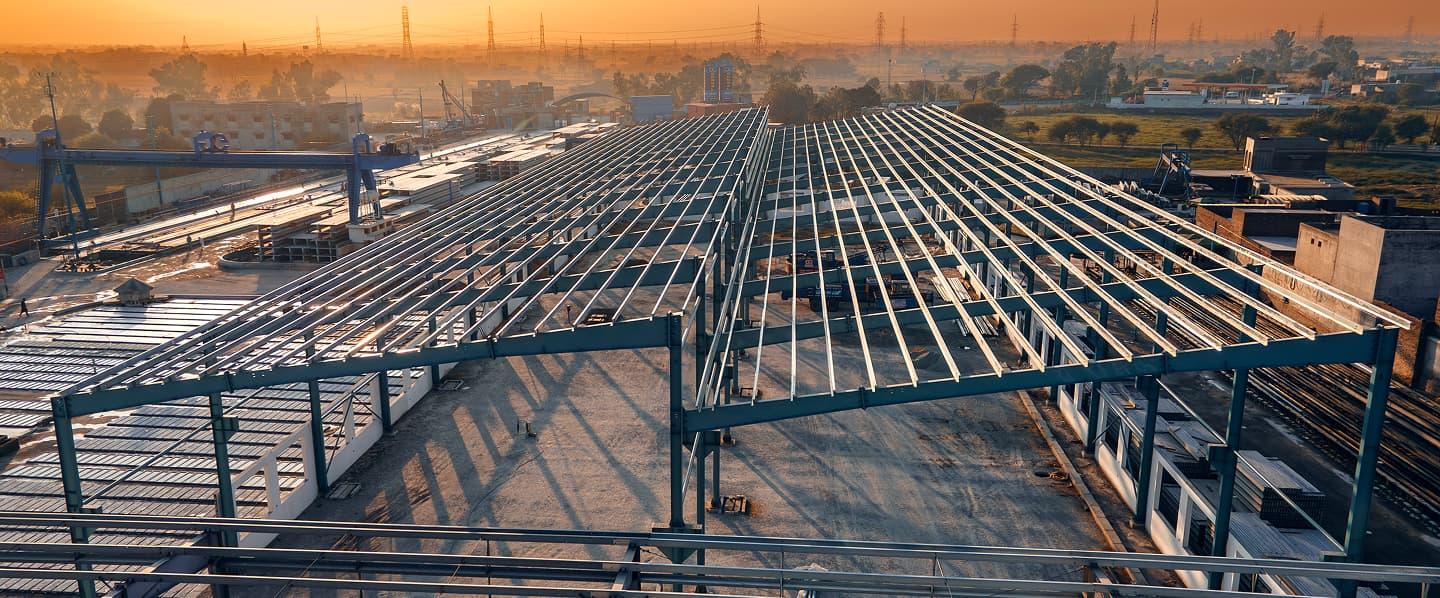

Pre-Engineered Buildings, or PEBs, of the Gondal group of industries, are the parts of a building that are made in a factory and then put together on-site. Our PEBs are usually steel and can be workable as an alternative to traditional steel structures. Our PEBs structural parts are made in the factory to the exact size, then shipped to the job site and put together, usually with bolts.

Interactive Model

Why
Pre Engineered Buildings?

Cost-Effective

Our PEBs systems approach reduces design, manufacturing, and on-site erection costs. Bundled secondary members and cladding decrease transportation costs.

Low maintenance

Our PEBs have High-quality cladding, and steel paint is applied in a well-controlled environment resulting in long durability and low maintenance costs.

Expandability

Adding bays lengthens our PEBs buildings. A pre-engineered building allows for width and height extension.

Roof and wall energy-efficiencies system

In order to attain U values, our PEBs can insulate buildings with polyurethane panels or fiberglass blankets.

Quality Control

The quality of our PEBs is easier to manage as metal structures are made in the factory under regulated conditions.

Versatility

Our PEBs systems are designed to accept pre-cast concrete wall panels, curtain walls, block walls, and other wall systems with metal panels, fascia, canopies, and curved eaves.

Pre-Engineered Buildings
Comparative Studies

Evaluation Criteria PE Buildings Concrete Buildings
Fabrication

Precise fabrication:

Members fabricated in a controlled environment and up to 50% saving in fabrication time on site.

Fabrication done on site;

Requires building the reinforcement cage and shuttering work prior to pouring.

Delivery and Logistics Can be delivered in the desired sequence anywhere in the world. Might have to build batch plant on site if site is secluded or huge.
Installation Time 50% saving in construction time. Fast Installation with no idle time. Slow and time consuming: The contractor will have to wait for the previous cast to harden (14-28 days) before being able to cast next batch.
Quality

Quality of steel is guaranteed because;

✅ It is a homogeneous product.
✅ Pieces are tailored according to shop drawings.
✅ Precise machinery is used for fabrication.
✅ It is fabricated under shop control.
✅ Quality is not affected by weather conditions.

Many factors lead to quality deterioration;

❌ Concrete is not a homogeneous product.
❌ Concrete mix ingredient ratios are difficult to maintain.
❌ Quality of water used may vary.
❌ Weather conditions.
❌ Labor experience in pouring.
❌ Adequate use of vibrators.
❌ Using proper curing methods.
❌ Concrete shrinkage.
❌ High manpower count may weaken control.

Cost Savings of 10%-15% for large span steel building. Construction cost is high at site.
Industrial Applications Saving on maintenance cost: Can easily handle equipment such as multiple cranes within building. Sways can be controlled. Precision can be achieved during installation. Heavy equipment usage such as cranes is limited.
Commercial & Infrastructure Applications Better aesthetics and longer spans can be achieved using steel as building component. Limited designs are possible with concrete.

Component of
Pre Engineered Buildings

Rigid Frame with By-Pass Grits

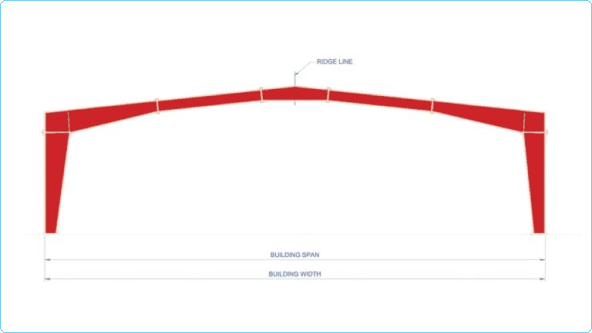

Rigid frames are two or more columns connected to the rafters with rigid connections.
A bay space is a space between the straight frames of a steel building. The width of the building shows which bay space is the best deal. Usually, the space in the bay is between 6m and 9m.
A rigid frame is a common choice for many pre-engineered steel building plans. For the strongest structure, solid I-beams are used. Pre-engineered builders can use a rigid frame for almost any construction project. On each side of a dual-slope frame, rigid frames are often made to carry the weight of half of the roof bay.

Vertical Fascia

A fascia system improves the look of a pre-engineered steel building, turning it from a plain-looking structure into an attractive one.
The vertical fascia most common and inexpensive type, is the one that goes up and down. It gives the impression of strength by looking strong and having straight, smooth edges. This fascia may or may not have a soffit. A soffit adds to a clean, flush look and is a must-have.

Mezzanine Joist Connection to Mezzanine Beam

The Gondal Group Industries’ mezzanine framing system has a steel deck held by joists on the Mezzanine beams.

If loads allow, intermediate columns should support mezzanine beams. The joists’ upper flange fits below the mezzanine beams’.

Mezzanine expenses depend on a dead, live, and collateral loads and column spacing. We will help you create a mezzanine affordably.

Main mezzanine beams should run across the building’s width and under the main frame rafters. Joists should be aligned with roof purloins along the building’s length.

If the full design data is available when quoting mezzanines with numerous levels, an equipment platform inside the building, catwalks, and staircases may be achievable.

Canopy

People observe a building’s canopy as they approach. Pre-engineered metal canopies make an impression and serve multiple uses. Here are several ways these canopies might improve your company and structure.
Metal canopies increase a building’s aesthetic and shelter guests from the rain. They offer a pleasant environment and ambience for commercial venues.

Parapet Fascia
The parapet fascias stick out from the building walls to hide the building’s peak. Their main purpose is to make the roof look like a solid flat surface.

No matter what you want to use your building for, putting a fascia on it will make it look better and increase its value.

Mezzanine Beam Connection to Main Frame Column
Our mezzanine structure solution uses joists to support a steel deck. Ideally, intermediate columns should support major beams. Upper joist flanges fit below the main beams. We’ll develop an affordable mezzanine. The main mezzanine beams should go under the main frame rafters. Joists should be aligned with roof purloins.
Roof System with Insulation
We will insulate and protect your metal building and make heated rooms warmer in winter and cooler in summer. If you wish to use your steel building for human habitation, you should insulate it.
Endwall Roof Extension with soffit
Roof Extensions are a continuation of the roof over the endwall. They come with soffit panels as an option and come in standard projections of either 3′-6″ or 6′-6″, respectively.
Sidewall Roof Extension
Roof extensions are projections of a building’s roof that extend beyond the planes of the sidewalls of the structure. Sidewall Roof extensions offer an increased level of protection against the elements of the walls. A building’s aesthetic appeal is also improved due to its installation.

Applications of
Pre Engineered Buildings

Factories / Workshops

Our Pre-engineered factories /workshops are the most profitable, steady, long-term economic option.

Labor Camps

Most labor camps are huge. Pre-engineered worker camps save time and money on wall and roof construction.

Exhibition / Wedding Halls

Multipurpose halls made through our pre-engineered building can withstand for a long. its less expensive with no time.

Schools

Our pre-engineered building can be used for schools because its durability and resistance ensure the safety of students within the school.

Sports Arenas

Sports arenas used for different sports activities need safe and secure covering, which we offer through pre-engineered build sports arenas.

Dairy & Poultry Farms

Dairy and Poultry farms are the sources of living and energy. We are offering its protection through the pre-engineered building of dairy and poultry farms.

Factories / Workshops

Our Pre-engineered factories /workshops are the most profitable, steady, long-term economic option.

Labor Camps

Most labor camps are huge. Pre-engineered worker camps save time and money on wall and roof construction.

Dairy & Poultry Farms

Dairy and Poultry farms are the sources of living and energy. We are offering its protection through the pre-engineered building of dairy and poultry farms.

Exhibition / Wedding Halls

Multipurpose halls made through our pre-engineered building can withstand for a long. its less expensive with no time.

Schools

Our pre-engineered building can be used for schools because its durability and resistance ensure the safety of students within the school.

Sports Arenas

Sports arenas used for different sports activities need safe and secure covering, which we offer through pre-engineered build sports arenas.
